Razor Barbed Wire

2023-07-06

Product Introduction

Alias:
Razor Type:
Coil Diameter:
Barb Width:
Barb Length:
Barb Spacing:
Surface:
Razor Thickness:
Application:
Certification:
Material:
Concertina Razor Wire
Razor Wire Coil
100mm - 960mm
11mm - 33mm
10mm - 65mm
25mm - 100mm
Galvanized
0.5mm-0.6mm +/-0.05mm
Protective Construction
ISO9001:2008
Steel Wire or Iron Wire

PRODUCT DESCRIPTION

Razor Barbed Wire is also named Concertina Razor Barbed Wire, razor fencing wire, razor blade wire or dannert wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets.With sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.

Concertina fence has been recognized a very powerful device to object unwanted entry of enemies or animals. Sharp blades and spiral structure can trap anyone who intends to go through or over the concertina wire. with the Concertina Razor Wire on the top of other fences, it can greatly improve the safety factor. Razor Mesh has been in use throughout the world at airports, military bases & borders for many years.

Concertina Razor Wire, also called Razor Wire.it the normal type of Razor wire you see around prisons and high security establishments.As an effective and economical security barrier, with its high security function,Concertina Razor Wire can prevent most of the intruders for it is hard and dangerous to broken.

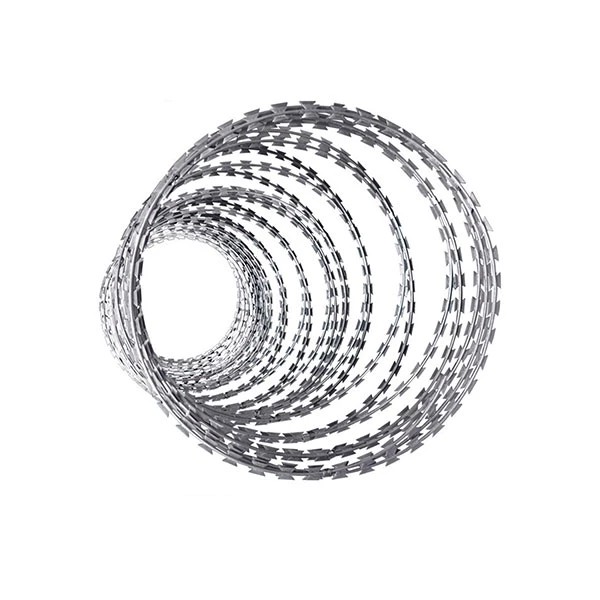

Razor Barbed Wire 01 1

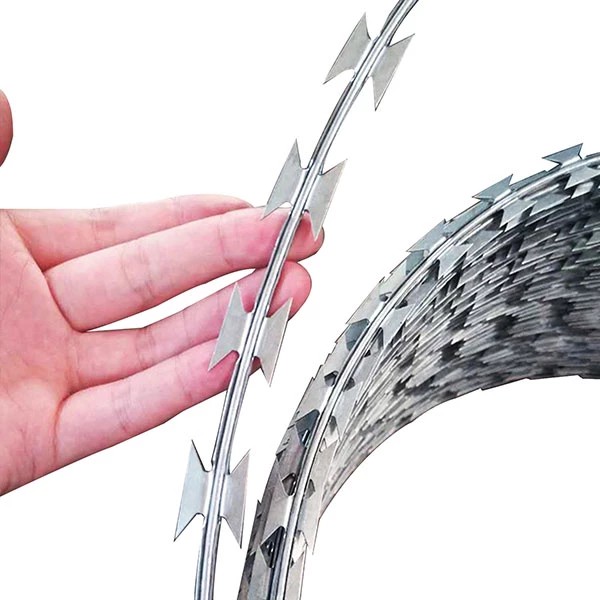

Razor Barbed Wire 01 2

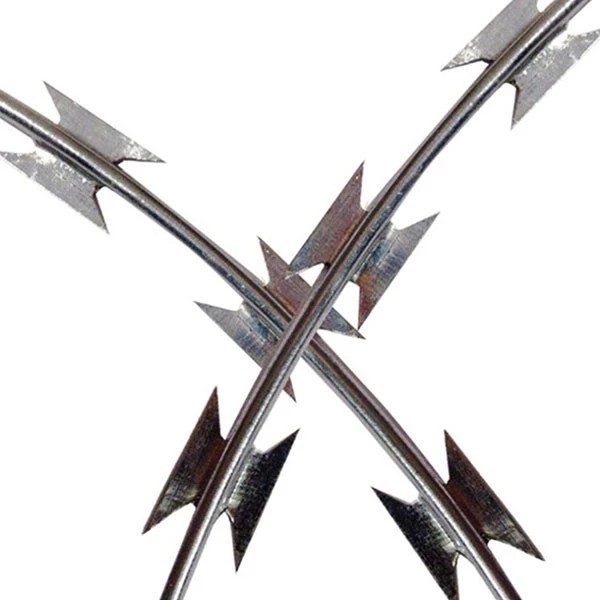

Razor Barbed Wire 01 3

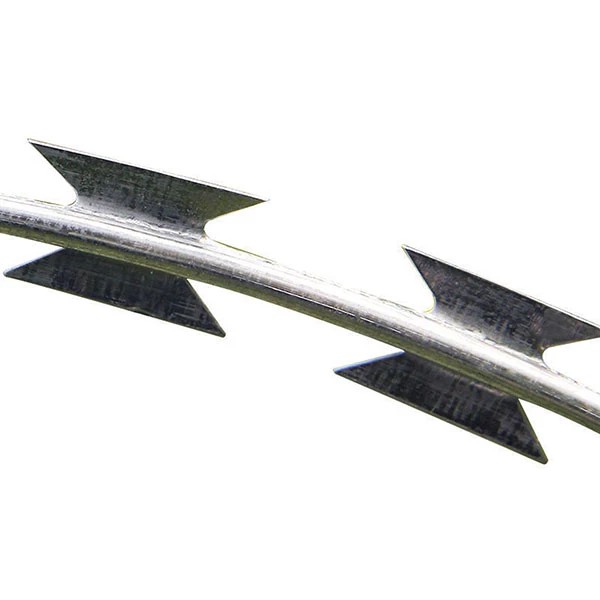

Razor Barbed Wire 01 4

SPECIFICATIONS

Material of Razor Wire:

    Normal hot dipped galvanized razor wire (40-60 g/m2)

    Heavily zinc coated razor wire(70-270 g/m2)

    Stainless steel 304 or 316 grades razor wire

Surface Treatment:

    Hot dipped galvanized or pvc coated.

Clips of concertina wire:

    3 clips,5 clips or without clips

Coil Diameter of concertina wire:

    300/450/500/600/700/800/950/1000mm

Razor Blade:

    BTO-10,BTO-12,BTO-18,BTO-22,BTO-28,BTO-30,CBT-60,CBT-65

Razor Barbed Wire 02 1
Razor Thickness Reference

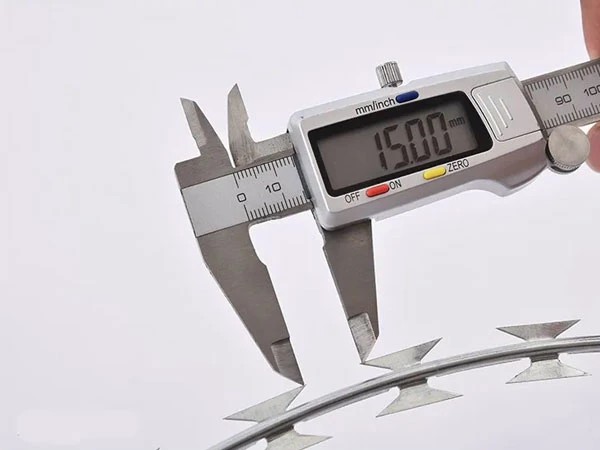

Razor Barbed Wire 02 2
Razor Spacing Reference

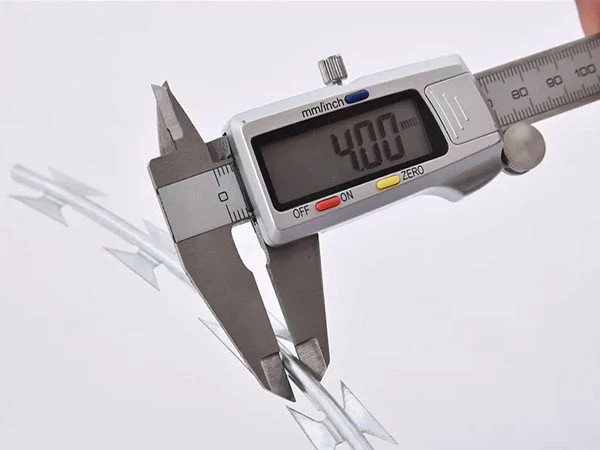

Razor Barbed Wire 02 3
Main Wire Thickness Reference
Specifications of Razor wire
The Coil DiameterNo. of loopsLength per coilRazor Wire TypesNotes
450mm337-8mCBT-60.65single coil
500mm5612-13mCBT-60.65single coil
700mm5613-14mCBT-60.65single coil
960mm5614-15mCBT-60.65single coil
450mm568-9m(3 clips)BTO-10.12.18.22.28.30cross type
500mm569-10m (3clips)BTO-10.12.18.22.28.30cross type
600mm5610-11M (3 clips)BTO-10.12.18.22.28.30cross type
600mm568-10M (5clips)BTO-10.12.18.22.28.30cross type
700mm568-10M (5 clips)BTO-10.12.18.22.28.30cross type
800mm5611-13M (5 clips)BTO-10.12.18.22.28.30cross type
900mm5612-14M (5 clips)BTO-10.12.18.22.28.30cross type
960mm5613-15M (5 clips)BTO-10.12.18.22.28.30cross type
Razor wire type
Reference NumberBlade StyleThicknessWire DiaBarb LengthBarb WidthBarb spacing
BTO-10spacer20230706143333558.png0.5±0.052.5±0.110±113±126±1
BTO-1220230706143333931.pngspacer0.5±0.052.5±0.112±115±126±1
BTO-18spacer 20230706143335306.png0.5±0.052.5±0.118±115±133±1
BTO-22spacer 20230706143337640.png0.5±0.052.5±0.122±115±134±1
BTO-28spacer 20230706143337941.png0.5±0.052.5281545±1
BTO-3020230706143339614.png0.5±0.052.5301840±1
CBT-60spacer 20230706143340860.png0.6±0.052.5±0.165±221±1100±2
CBT-65spacer 20230706143341326.png0.6±0.052.5±0.165±221±1100±2

APPLICATION

  • Galvanized metal, stainless steel and PVC coated materials for choices.
  • Excellent anti-resistance effect.
  • Can be used with various security fencing for higher security grade.
  • Custom sizes available.
  • Available for residential, commercial, industrial and military purpose.

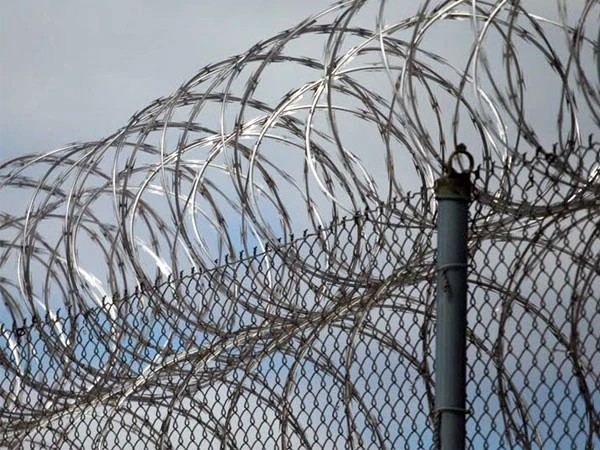

Razor Barbed Wire 03 1
Razor Barbed Wire 03 2
Razor Barbed Wire 03 3

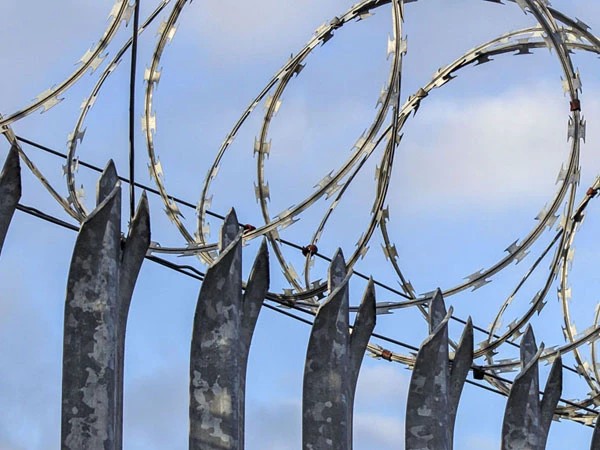

Razor Barbed Wire 03 4

PACKAGE & DELIVERY

1.Waterproof paper inside,woven bag outside,then 50 rolls/bundle or as required.

2.Nude package,then packing by wooden pallet or in bulk.

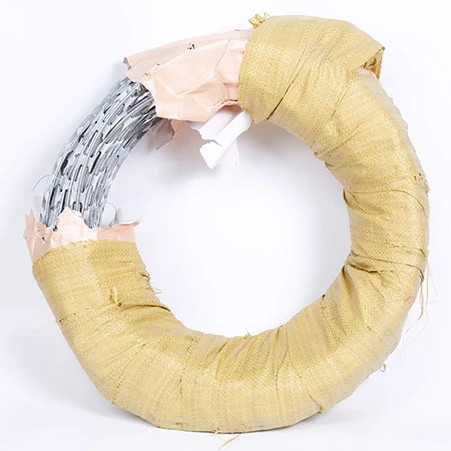

Razor Barbed Wire 04 1

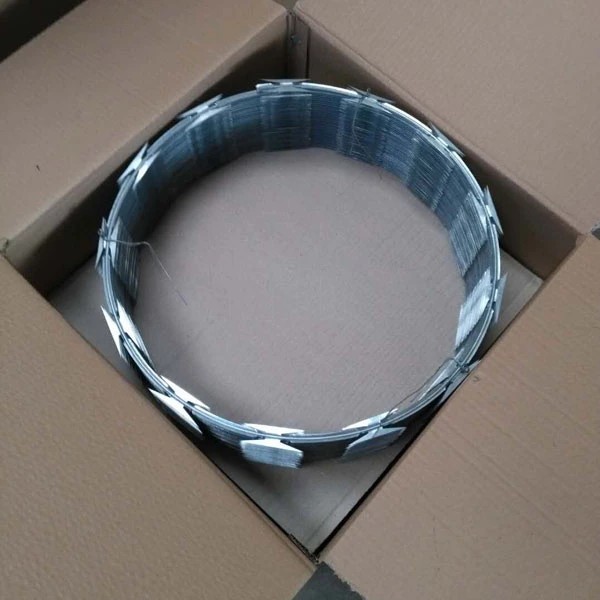

Razor Barbed Wire 04 2

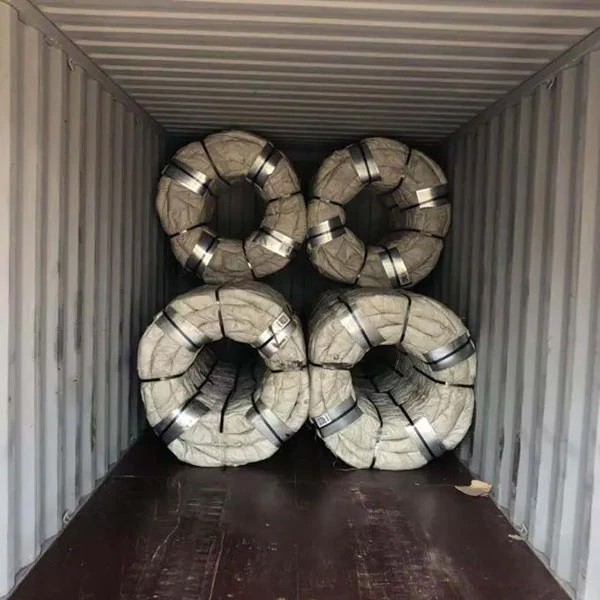

Razor Barbed Wire 04 4
Razor Barbed Wire 04 3
