Tinplate Sheet

2022-12-13

‹

  • Tinplate Sheet
  • Tinplate Sheet
  • Tinplate Sheet
  • Tinplate Sheet

›

Product Introduction

Application: Aviation, Electronics, Industrial, Medical, Chemical
Standard: JIS, GB, DIN, BS, ASTM, AISI
Purity: >99.95%
Type: Tin Plate
Shape: Flat Sheet
Alloy: Alloy

Parameter


Material   GradeSPCC, MR
Temper(BA&CA)T1, T2, T3, T4, T5, DR8, DR9
Tin Coating1.1~11.2g/m2
Thickness0.15~0.50mm (Tolerance: +/- 0.01 mm)
Width600~1050mm (Tolerance: 0~3mm)
Coil inside diameter 420/508mm
Coil Weight   1~5   MT
Surface Finish Bright, Stone, Silver, Matte, Mirror, and Color printing
TypeDesignation of Tin Coating
Equal Tin Coating1.4/ 1.42.2/ 2.22.8/ 2.85.6/ 5.68.4/ 8.411.2/ 11.2
Different Tin Coating1.4/ 2.82.2/ 2.82.8/ 5.62.8/ 8.42.8/ 11.25.6/ 8.45.6/ 11.28.4/ 11.2
MR

Base steel low in residual elements that has excellent corrosion resistance.

 It is widely used in general applications.

L

Base steel extremely low in residual elements such as Cu, Ni, Co, and Mo that has

 excellent corrosion resistance to certain types of food products.

D

Aluminum-killed base steel used in applications involving deep drawing or other types of

 severe forming that tend to give rise to Lueder's lines.

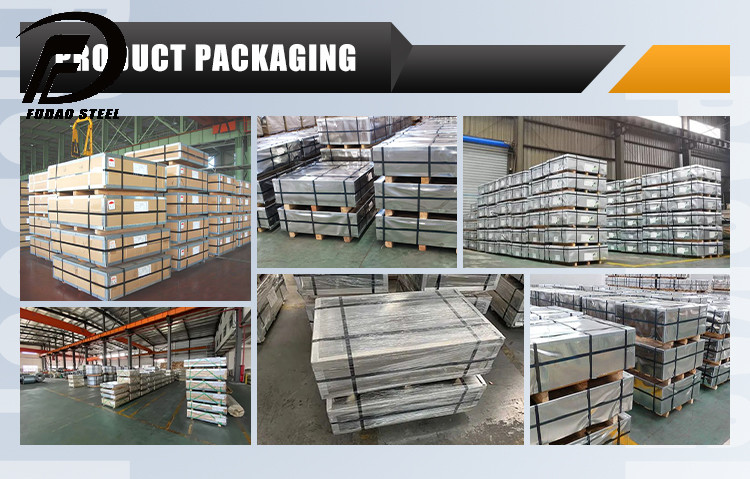

34_马口铁薄板 Tinplate Sheet.jpg
